Isostatic Pressing Graphite

Duratight brand isostatic pressing graphite, high-quality petroleum coke and pitch coke are used as the main raw materials, and the graphite products are made by milling (average particle diameter is less than 25 μ m), kneading, flaking, isostatic pressing, roasting, impregnation, graphitization and other processes.

characteristic:

1. The particle size is uniform;

2. Good quality stability;

3. Excellent self lubrication;

4. Good chemical corrosion resistance;

5. High thermal conductivity and thermal stability;

6. Sufficient mechanical strength and impact resistance;

7. The structure is uniform, compact and has strong antioxidant capacity;

8. Isotropy is good, and the characteristics are independent of size, shape and sampling direction;

9. Easy to machine, can be processed into a variety of geometric products.

Inquire now

Product Details

QQ图片20191017160708

Main technical specifications:

Article number	density (≥g/cm3)	Flexural strength (≥MPA)	compressive strength (≥MPA)	Shore hardness	Coefficient of thermal expansion (x10-6/℃)	ash content (≤PPM)	Particle size (μM)
Article number	density (≥g/cm3)	Flexural strength (≥MPA)	compressive strength (≥MPA)	Shore hardness	Coefficient of thermal expansion (x10-6/℃)	ash content (≤PPM)	Particle size (μM)
DT-IG-01	1.8	11~13	40	86	4.1	0.05	20
DT-IG-02	1.82	10~13	47	88	4.5	0.05	20
DT-IG-03	1.85	10~12	45	90	4.3	0.05	15
DT-IG-SIC1	1.83	13	60	125	4.7	0.05	10
DT-IG-R5	1.68	13~14	38	86	5	0.05	45
DT-IG-05	1.85	8~10	46	85	4.75	0.05	45
DT-EDM-7	1.82	11~13	51	115	5.6	0.05	45
DT-EDM-8	1.91	11~13	60	135	5.85	0.05	45

Application fields: Semiconductor, photovoltaic solar energy, EDM and mold processing, nuclear energy, metallurgy, aerospace and many other fields

Product specifications: according to customer size, the use of environmental requirements for customized production

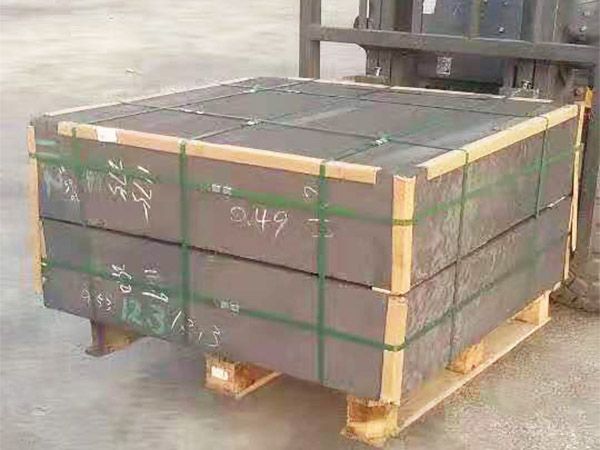

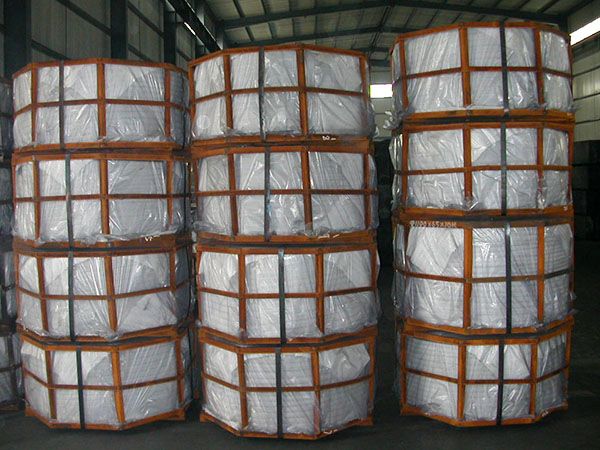

Packing method: wooden box or wooden cage + pallet packing

Delivery time: 5-10 working days, depending on the order quantity

Graphite is widely used in various fields, as professional supplier, we will recommend and supply the most suitable grade for different fields. in addition, Duratight owns different Surface Treatments to meet special requirements. Welcome you to share your exact demand to our team.
